Pro+

Check Exports Completeness

Checks that an exported API exports all used types (even transitive).

To execute the command, run:

$ dcm check-exports-completeness lib # or dcm ec lib

Full command description:

Usage: dcm check-exports-completeness [arguments] <directories>
-h, --help                                       Print this usage information.


-r, --reporter=<console>                         Analysis output format.
                                                 [console(Pro+) (default), json(Teams+), codeclimate(Teams+), gitlab(Teams+), checkstyle(Teams+), sonar(Teams+)]
-a, --absolute-path                              Show absolute paths in console reporter output.
    --json-path=<path/to/file.json>              Path to the JSON file with the analysis output.


-c, --print-config                               Print resolved config.


    --root-folder=<./>                           Root folder.
                                                 (defaults to the current directory)
-s, --sdk-path=<directory-path>                  Dart SDK directory path.
                                                 If the project has a `.fvm/flutter_sdk` symlink, it will be used if the SDK is not found.
-e, --exclude=<{**/*.g.dart,**/*.freezed.dart}>  File paths in Glob syntax to be exclude.
                                                 (defaults to "{**/*.g.dart,**/*.freezed.dart}")


    --[no-]congratulate                          Don't show output even when there are no issues.


    --verbose                                    Show verbose logs.


    --ci-key                                     The license key to run on CI server.
                                                 Can be provided via DCM_CI_KEY env variable.
    --email                                      The email used to purchase the license.
                                                 Can be provided via DCM_EMAIL env variable.


    --no-analytics                               Disable sending anonymous usage statistics.


    --[no-]fatal-found                           Treat found not exported code as fatal.
                                                 (defaults to on)

Suppressing the Command​

To suppress the command for an entire file, add the ignore_for_file: exports comment to the beginning of a file.

@visibleForTesting Annotation Support​

This command does no report types that are used in parameters marked "@visibleForTesting" as they are not expected to be part of the public API.

@internal Annotation Support​

Any exported declarations marked @internal is reported by this command as internal declarations are not expected to be exported. To fix these issues, try hiding reported declarations, making them private or removing the @internal annotation.

Output Example​

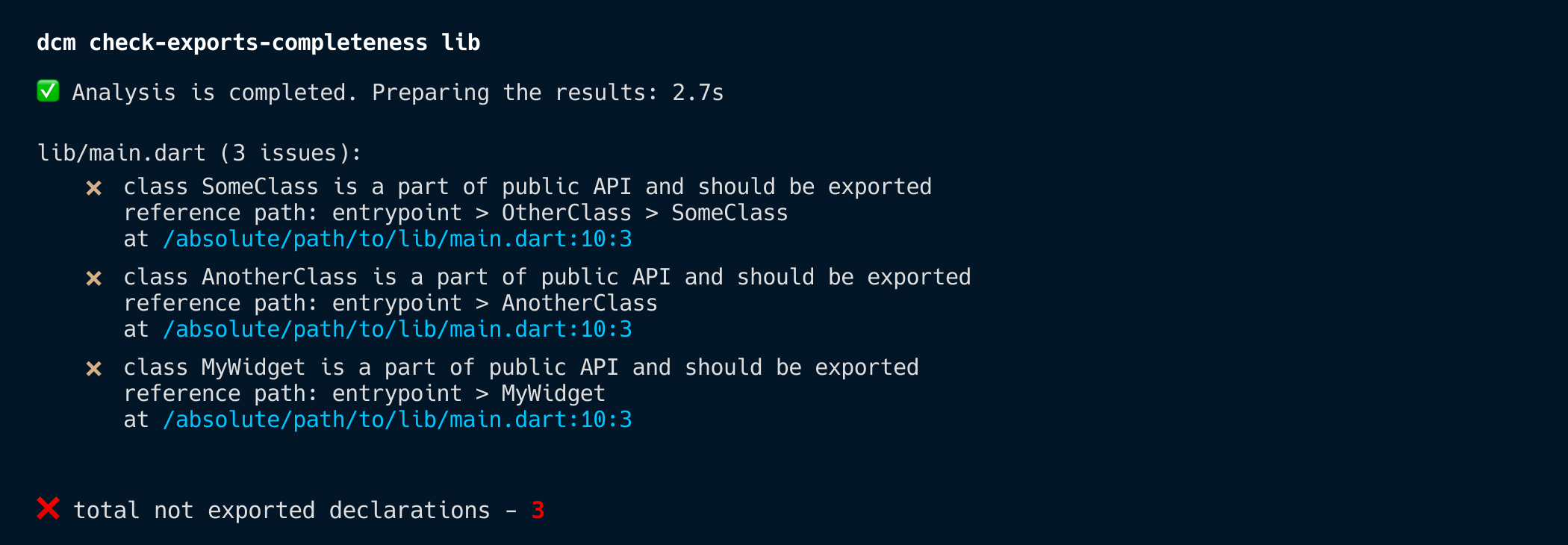

Console (default)​

Use --reporter=console to get output in console format.

Console

JSON​

Use --reporter=json to get output as a single JSON object containing metadata and the list of incomplete export issues.

Format specification

The root object fields are​

  • formatVersion - an integer representing the format version (will be incremented each time the serialization format changes)
  • timestamp - a creation time of the report in YYYY-MM-DD HH:MM:SS format
  • incompleteExports - an array of incomplete exports issues
{
  "formatVersion": 2,
  "timestamp": "2021-04-11 14:44:42",
  "incompleteExports": [
    {
      ...
    },
    {
      ...
    },
    {
      ...
    }
  ]
}

The incompleteExports object fields are​

  • path - a relative path of the file with the declaration that needs to be exported
  • issues - an array of issues detected in the target class
{
  "path": "lib/src/some/class.dart",
  "issues": [
    ...
  ],
}

The issue object fields are​

  • referencePath - the path representing the call chain from the entrypoint to this declaration
  • isMarkedInternal - a boolean flag value that indicates declarations marked @internal
  • declarationName - the name of a declaration that needs to be exported
  • declarationType - the type of a declaration that needs to be exported (function, method or constructor)
  • offset - a zero-based offset of the class member location in the source
  • line - a zero-based line of the class member location in the source
  • column - a zero-based column of class member the location in the source
{
  "referencePath": "entrypoint > someClass",
  "isMarkedInternal": false,
  "declarationName": "someFunction",
  "declarationType": "function",
  "offset": 156,
  "line": 7,
  "column": 1
}

GitLab​

Use --reporter=gitlab to get output in a GitLab-compatible format. To learn how to integrate DCM with GitLab, refer to this guide.

Code Climate​

Use --reporter=codeclimate to get output in Code Climate format.

Output example
{"type":"issue","check_name":"exports-issue","description":"class DuplicationAnalysisConfig is part of the public API and should be exported","categories":["Bug Risk"],"location":{"path":"lib/src/analyzers/duplication_analyzer/duplication_analysis_config.dart","positions":{"begin":{"column":1,"line":3},"end":{"column":2,"line":30}}},"severity":"major","fingerprint":"e45515ff56de0dcd92be41d3bd2797d1"}
{"type":"issue","check_name":"exports-issue","description":"class StructureAnalysisConfig is part of the public API and should be exported","categories":["Bug Risk"],"location":{"path":"lib/src/analyzers/structure_analyzer/structure_analysis_config.dart","positions":{"begin":{"column":1,"line":3},"end":{"column":2,"line":31}}},"severity":"major","fingerprint":"a40b1c5a31b1687ad12e9c068c18c8b3"}

Checkstyle​

Use --reporter=checkstyle to get output in Checkstyle format.

Output example
<?xml version="1.0"?>
<checkstyle version="10.0">
  <file name="../abstract_class.dart">
    <error line="0" severity="warning" message="function myFunction is part of the public API and should be exported" source="exports-issue"/>
  </file>
  <file name="../class_with_factory_constructors.dart">
    <error line="0" severity="warning" message="class MyClass is part of the public API and should be exported" source="exports-issue"/>
    <error line="0" severity="warning" message="function myFunction is marked as 'internal' but is publicly accessible" source="exports-issue"/>
  </file>
</checkstyle>
note

Checkstyle format is supported by Bitbucket. To learn how to integrate DCM with Bitbucket, refer to this guide.

Sonar​

Use --reporter=sonar to get output in SonarQube's generic format for external issues.

Output example
{
  "rules": [
    {
      "cleanCodeAttribute": "CLEAR",
      "description": "To learn more, visit the documentation https://dcm.dev/docs/cli/code-quality-checks/exports-completeness/",
      "engineId": "dcm",
      "id": "exports-issue",
      "impacts":[
        {
          "severity": "MEDIUM",
          "softwareQuality": "MAINTAINABILITY"
        }
      ],
      "name": "exports-issue"
    }
  ],
  "issues": [
    {
      "effortMinutes": 5,
      "primaryLocation": {
        "filePath": "lib/src/umbrella/models/umbrella_reports.dart",
        "message": "class UmbrellaReports is part of the public API and should be exported",
        "textRange": {
          "endColumn": 2,
          "endLine": 84,
          "startColumn": 1,
          "startLine": 13
        }
      },
      "ruleId": "exports-issue"
    }
  ]
}
