GitHub Actions

To use DCM with GitHub, install dedicated GitHub Actions: setup-dcm and dcm-action.

note

If you are migrating from @v1, replace all _ in the configuration option names with - (for example, github_token -> github-token). This change was made to make the github action options consistent with the CLI options.

Visit setup-dcm@v1 or dcm-action@v1 to access the docs for v1.

setup-dcm

setup-dcm installs and sets up DCM for use in GitHub Actions.

Usage Example

name: DCM

on:
  pull_request:
    branches: [main]
  push:
    branches: [main]

jobs:
  check:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout
        uses: actions/checkout@v3

      - name: Install Dart and Flutter
        uses: subosito/flutter-action@v2

      - name: Install dependencies
        run: flutter pub get

      - name: Install DCM
        uses: CQLabs/setup-dcm@v2
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}

      - name: Run DCM
        run: dcm analyze --ci-key="${{ secrets.DCM_CI_KEY }}" --email="${{ secrets.DCM_EMAIL }}" lib

info

Even though DCM is no longer an analyzer plugin, it's important to install dependencies via pub get before running dcm checks.

Alternatively, you can install DCM on your CI directly

- name: Install DCM
    run: |
      sudo apt-get update
      wget -qO- https://dcm.dev/pgp-key.public | sudo gpg --dearmor -o /usr/share/keyrings/dcm.gpg
      echo 'deb [signed-by=/usr/share/keyrings/dcm.gpg arch=amd64] https://dcm.dev/debian stable main' | sudo tee /etc/apt/sources.list.d/dart_stable.list
      sudo apt-get update
      sudo apt-get install dcm

Inputs

The action takes the following inputs:

• github-token: Used to get the latest DCM version from GitHub releases (required).
• version: Which DCM version to setup:
  • A specific DCM version (e.g. 1.21.2)
  • or latest (default)
  • or auto (to reuse the version constraint from dcm_global.yaml described here)

Outputs

The action produces the following output:

• dcm-version: The version of the DCM executable that was installed.

dcm-action

dcm-action runs DCM checks in GitHub Actions. It can also add a comment with dcm checks status to your Pull Requests.

info

This action requires write permissions for checks and pull-requests. For more information, refer to GitHub docs here and here.

Usage Example (combined with setup-dcm)

name: DCM

on:
  pull_request:
    branches: [main]
  push:
    branches: [main]

jobs:
  check:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout
        uses: actions/checkout@v3

      - name: Install Dart and Flutter
        uses: subosito/flutter-action@v2

      - name: Install dependencies
        run: flutter pub get

      - name: Install DCM
        uses: CQLabs/setup-dcm@v2
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}

      - name: Run DCM
        uses: CQLabs/dcm-action@v2
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}
          ci-key: ${{ secrets.DCM_CI_KEY }}
          email: ${{ secrets.DCM_EMAIL }}
          analyze: true
          folders: lib

warning

working-directory option works only for run steps and has no effect when used with an action. You can find more info in GitHub docs.

Inputs

note

If you have a DCM Open Source license, pass oss to both CI key and email inputs.

Name	Required	Description	Default
github-token	☑️	Required to post a report on GitHub. Note: the secret GITHUB_TOKEN is already provided by GitHub and you don't have to set it up yourself.
github-pat	In some cases1	Personal access token. Must have access to repo and read:user scopes.
ci-key	☑️	The license CI/CD key.
email	☑️	The license email.
pull-request-comment		Add a comment with a report overview to your pull requests.	true
pull-request-comment-on-fail		Add a comment with a report overview to your pull requests, but only when any DCM check fails. Note, when this option is enabled, pull-request-comment must be explicitly set to false.	false
package-name		Package name to differentiate the report. Set when running several DCM runs at once.
### General:
folders		List of folders and files (comma separated) to scan.	[lib]
exclude		List of files to exclude (in Glob syntax). If passing more than 1 glob pattern, wrap the list of patters into {}.	{**/*.g.dart, **/*.freezed.dart}
exclude-public-api		Exclude publicly exported code from the analysis output.	false
fatal-found		Treat any found issue as fatal.	true
### Commands:
analyze		Run dcm analyze (docs).	true
analyze-assets		Run dcm analyze-assets (docs). Supports additional options listed below.	false
analyze-widgets		Run dcm analyze-widgets (docs). Supports additional options listed below.	false
calculate-metrics		Run dcm calculate-metrics (docs).	false
check-code-duplication		Run dcm check-code-duplication (docs). Supports additional options listed below.	false
check-dependencies		Run dcm check-dependencies (docs). Supports additional options listed below.	false
check-exports-completeness		Run dcm check-exports-completeness (docs).	false
check-parameters		Run dcm check-parameters (docs). Supports additional options listed below.	false
check-unused-code		Run dcm check-unused-code (docs). Supports additional options listed below.	false
check-unused-files		Run dcm check-unused-files (docs).	false
check-unused-l10n		Run dcm check-unused-l10n (docs). Supports additional options listed below.	false
### Analyze Assets:
size		Size limit for image assets (docs). Supported formats: 10KB, 1MB, 100B, etc.	500KB
webp		Require converting .jpg and .png images to .webp (docs).	false
naming		Required naming convention for image assets (pascal, kebab or snake) (docs).
resolution		Find missing or incorrect resolution-aware image assets (docs).	true
allowed-formats		List of allowed formats for particular folders (e.g. icons:svg,img:jpg) (docs).
### Analyze Widgets:
show-similarity		Include similar widgets into the report (docs).	false
similarity-threshold		Set a minimum threshold after which widgets are considered similar.	0.2
### Check Code Duplication:
per-package		Compare code for duplications only within one package (docs).	false
exclude-overrides		Exclude methods marked with @override (docs).	false
statements-threshold		Minimum number of statements inside a declaration block (docs).	3
### Check Dependencies:
ignored-packages		Package names that should be ignored (docs).
### Check Parameters:
show-same-value		Include parameters that always get the same constant argument (docs).	false
show-unused-default-value		Include parameters with default values that always get an argument (docs).	false
show-redundant		Include parameters whose values are always passed with another parameter (docs).	false
show-unused-vft		Include @visibleForTesting parameters that are never used in tests (docs).	false
show-broad-types		Include parameters whose types can be made more specific (docs).	false
### Check Unused Code:
no-exclude-overridden		Do not treat overridden members as always used (docs).	false
### Check Unused L10n:
class-pattern		Regular expression for class names to detect classes that provide localization (for example, ^AppLocalizations$).	^AppLocalizations$

Outputs

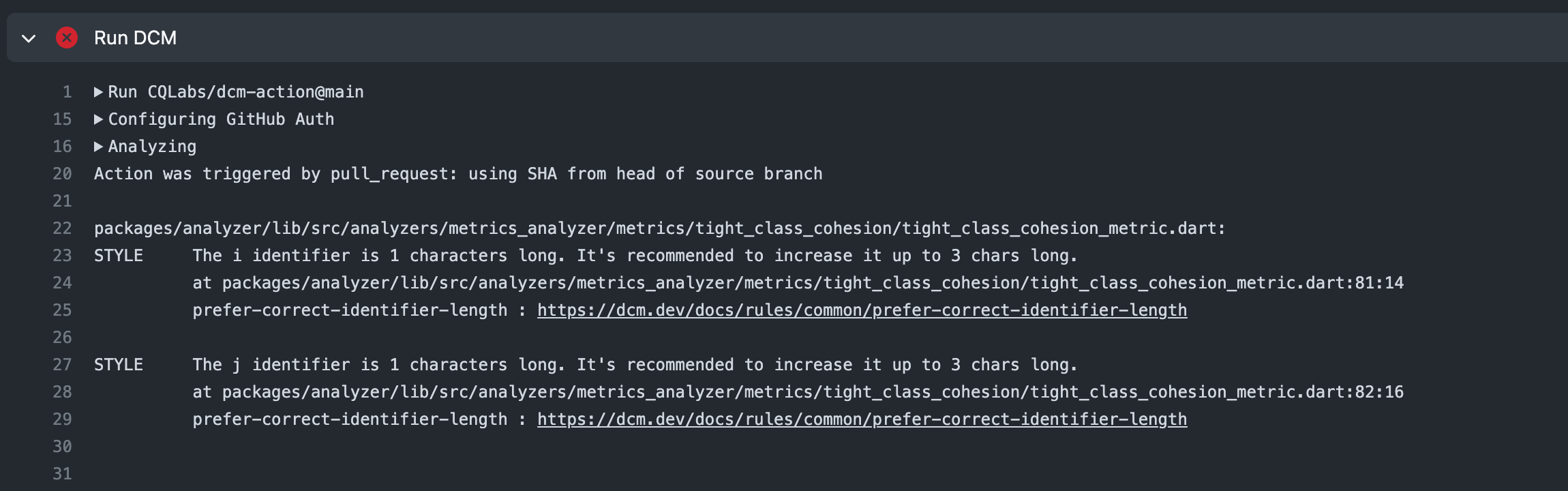

Action Console

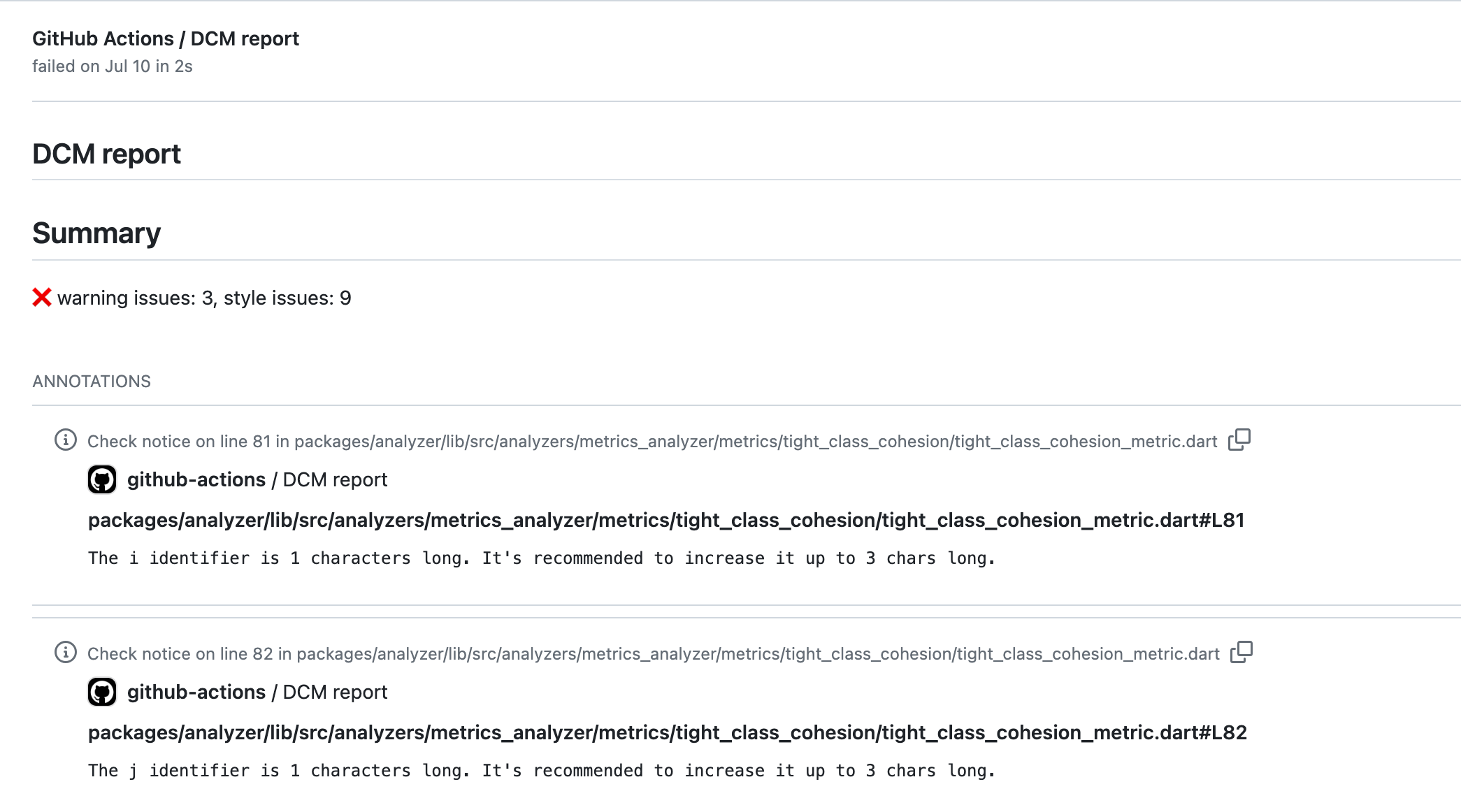

PR Summary

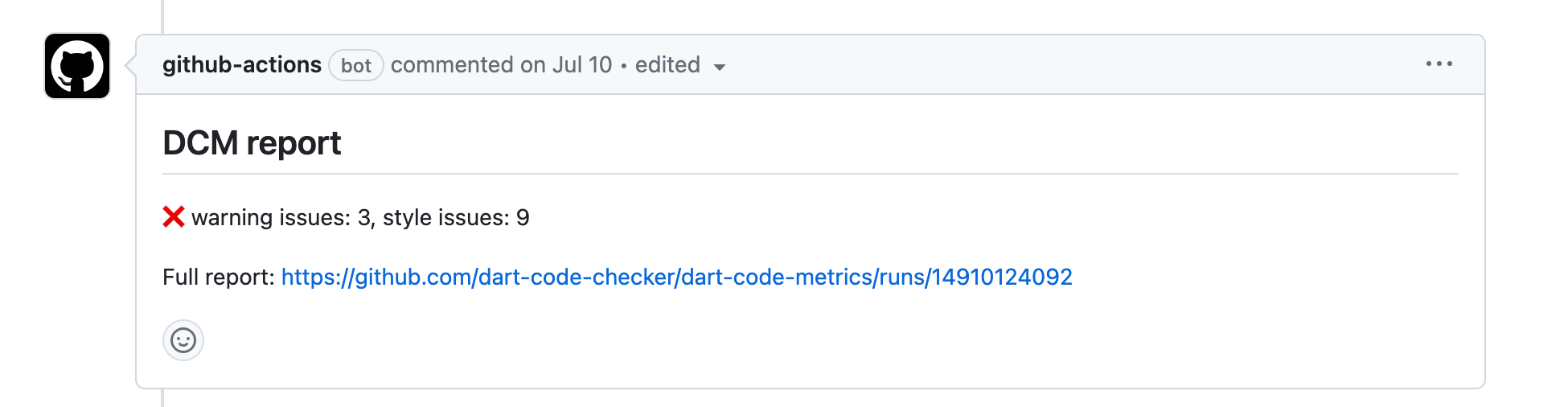

PR Comment

Footnotes

1. Required if you have a private GitHub repository in the package dependencies. ↩
