VS Code Extension

DCM VS Code extension is responsible for starting the analysis process and displaying analysis errors.

To download the extension, view the extension page or open it in VS Code.

Extension Capabilities​

All the errors calculated by the analysis process will be displayed in the opened files and the "Problems view".

Quick fixes are also available, simply call the quick fix menu on the issue in the opened file.

You can quickly fix all fixable DCM rule issues with "DCM: Fix All Auto-fixable Problems" IDE command or via a shortcut ⌘ + Shift + S.

To apply fixes on save, modify the settings.json to the following:

.vscode/settings.json
{
  "editor.codeActionsOnSave": {
    "source.fixAll": "explicit",
    "source.dcm.fixAll": "explicit",
    // or, to enable unsafe fixes on save,
    // "source.dcm.unsafeFixAll": "explicit",
  }
}

Assists​

Wrap with a Custom Widget​

Extract to a New File​

Analysis Options Files​

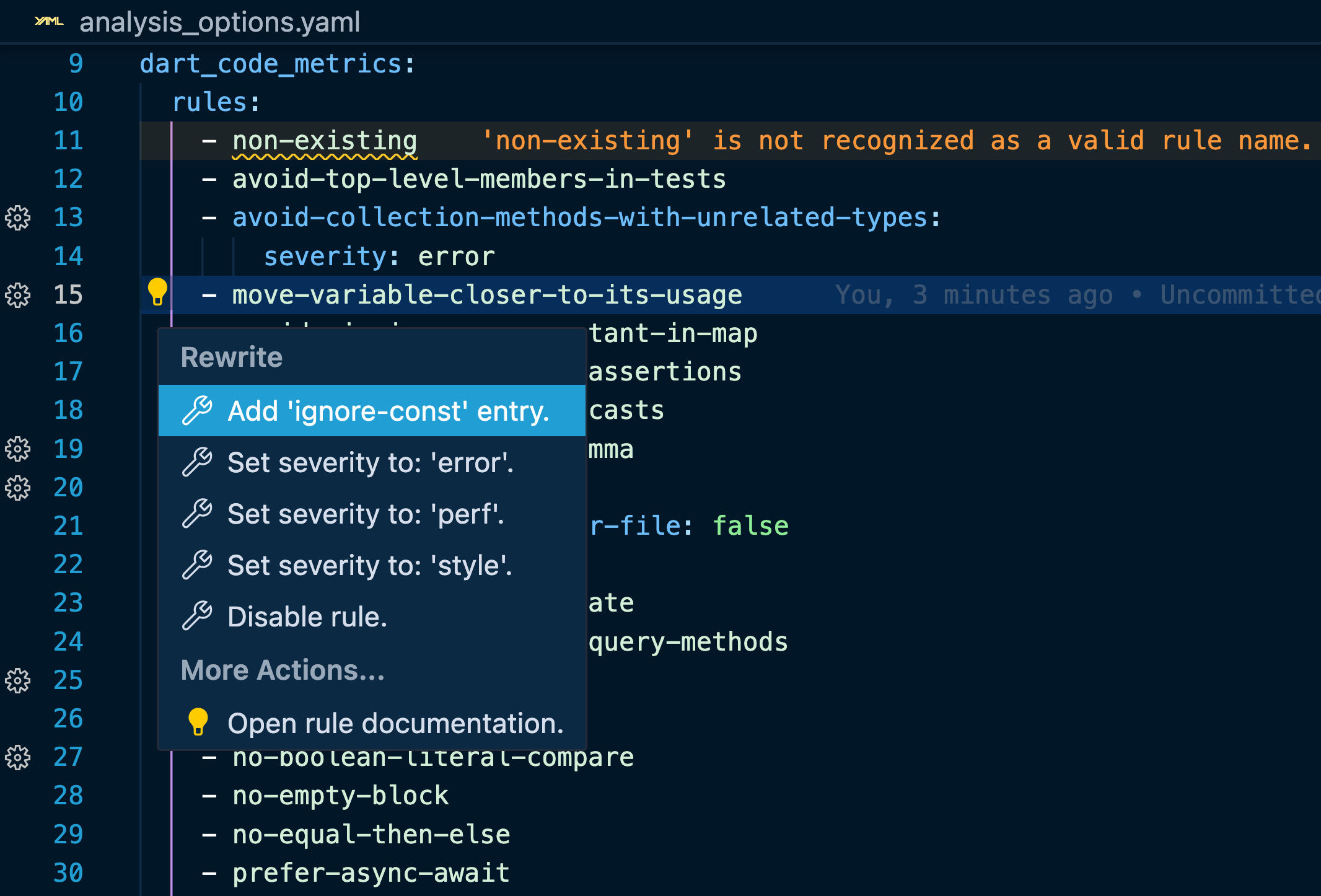

If the analysis_options.yaml file is open, the extension will mark all rules that support additional config with ⚙️ icon.

You can also call the code action menu on each rule to quickly change its severity, disable it or open the rule documentation.

Analysis options code actions preview

Custom Analysis Options Files​

Aside from the regular analysis_option.yaml file, you can add a custom config file that matches one of the given patterns

  • starts with analysis_options (e.g. analysis_options.1.1.0.yaml)
  • starts with dcm (e.g. dcm_config.yaml or dcm.yaml)
  • placed inside a folder called dcm (e.g. dcm/config.yaml)

If such a file is referenced by any analysis_option.yaml file, DCM will correctly update configuration changes, validate rule names and display a configuration icon (⚙️) for configurable rules.

However, unlike for regular analysis_options.yaml files, code actions are not available.

Enabling Autocompletion​

Unfortunately, VS Code treats .yaml files content as text and does not provide autocompletion by default.

To enable autocompletion for DCM configuration (and also for the Dart configuration and pubspec files), modify the settings.json to the following:

.vscode/settings.json
{
  "[yaml]": {
    "editor.quickSuggestions": {
      "strings": "on"
    }
  }
}

Available Commands​

  1. > DCM: Restart Analysis server
  2. > DCM: Activate License key
  3. > DCM: Share Feedback
  4. > DCM: Capture All Logs
  5. > DCM: Open Extension Log
  6. > DCM: Fix All Auto-fixable Problems
  7. > DCM: Format Current File
  8. > DCM: Show Issues From Baseline
  9. > DCM: Hide Issues From Baseline
  10. > DCM: Show / Hide Unused Code Issues
  11. > DCM: Show / Hide Unused File Issues
  12. > DCM: Open Rules Page
  13. > DCM: Open Metrics Page

Available Configuration​

  1. Dart SDK Path - is detected automatically if listed in PATH, but can be set up explicitly, if another version of the SDK should be used. FVM is also supported, if the project has a .fvm/flutter_sdk symlink - it will be used by the extension as well.
  2. DCM Executable Path - is detected automatically if listed in PATH, but can be set up explicitly.
  3. Show New Version - Show a notification when there is a new DCM version available.
  4. Show Unused Code - Show unused code in the IDE (exclude-public-api is currently not supported).
  5. Show Unused Files - Show unused files in the IDE (exclude-public-api is currently not supported).
  6. Disable Baseline - Disable baseline and show ignored issues in the IDE.
  7. Enable Old Formatter - Enable pre-Dart 3.7 formatter.

Inherited Configuration​

The following configuration gets picked up if set for the Dart extension

  1. "dart.analysisExcludedFolders"
  2. "dart.onlyAnalyzeProjectsWithOpenFiles"

Manually Locating the Dart SDK​

If for some reason the Dart SDK was not located automatically (and you have it in your PATH), use the extension configuration to locate it manually.

For a locally installed Flutter SDK, the expected folder is named dart-sdk and is typically located at ...flutter/bin/cache/dart-sdk (where flutter is the Flutter SDK folder).

Alternatively, you can run which dart (or an alternative Windows command) and replace /dart with /cache/dart-sdk.

note

If you are setting the path to the Dart SDK manually, consider reaching out to our support team.

We are interested in supporting as many cases as possible to ultimately reduce the need for manual setup to zero.

Locating Extension Logs​

To find the extension logs, use the > DCM: Open Extension Log IDE command (to collect all logs, use the > DCM: Capture All Logs before opening the logs file).

To find exceptions produced by the extension, go to View -> Output (or open the Output tab, which is located next to the Problem tab), and then select DCMLSP (if present) from the drop-down list on the right.

Ensuring the Entire Team Installs the IDE Extension​

To ensure that your entire team installs the DCM VS Code extension, configure the "Workspace recommended extensions".

extensions.json
{
  "recommendations": ["dcmdev.dcm-vscode-extension"]
}

Enabling Inline Diagnostics​

To have diagnostics appear as text at the end of the line, consider installing an additional IDE extension (for example, Error Lens).

warning

Make sure the installed third-party extension is not malicious. We are not liable for any damage caused by third-party extensions.

Changelog​

See the changelog.
